MX300
Multi Purpose Engine products information is accessible from here.
MX300

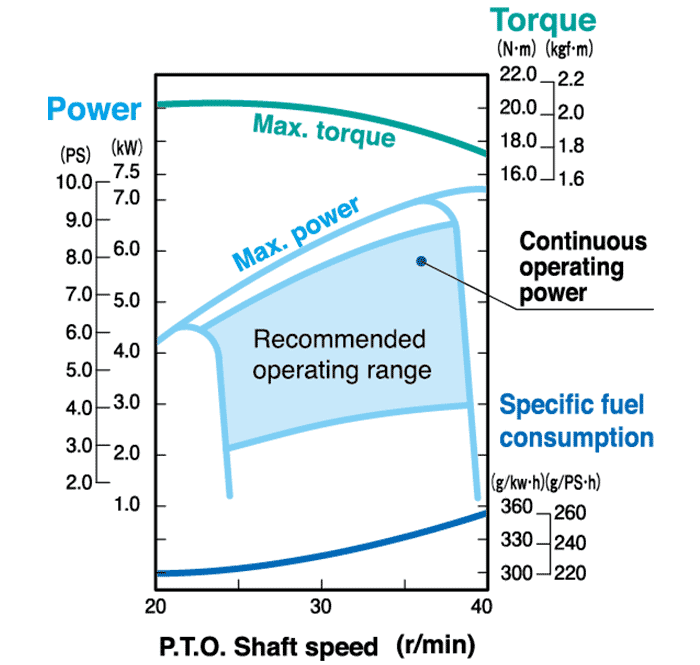

Performance Curve
Specification Sheet
| Model Name | MX300 |
|---|---|
| Type | Hemi-head OHV |
| Bore × Stroke | 80 × 59 mm |
| Displacement | 296cm3 |
| Compression Ratio | 8.4 |
| Max output | 7.0 kW @3600 r/min |
| Rated output | 5.8 kW @3600 r/min |
| Max Torque | 20.3 Nm @2400 r/min |
| Fuel | GASOLINE |
| Fuel Tank Capacity | 5.5 L |
| Ignition System | T.C.I |
| Spark Plug | NGK BPR4ES |
| Lubrication System | Mechanical Splashing |
| Oil Capacity | 1.0 L |
| Dry Weight | 26.5 Kg (Note:P.T.O.A Type) |
| Dimentions (L×W×H) | A2E:390 × 444 × 451 mm |
*Engine Output described above is representative net output measured at 3600rpm.

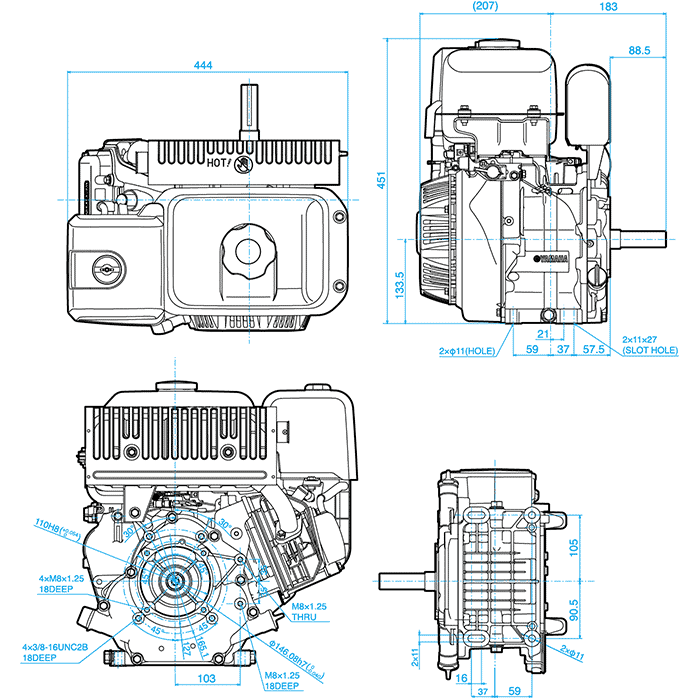

Dimensions
MX300 P.T.O. A Type

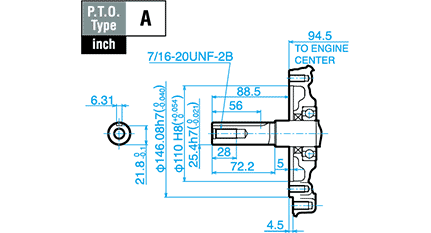

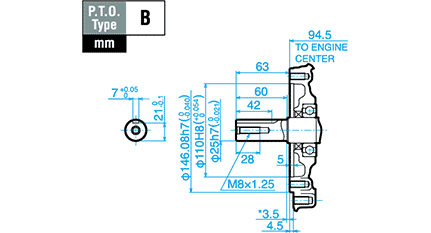

P.T.O. Shaft Dimensions

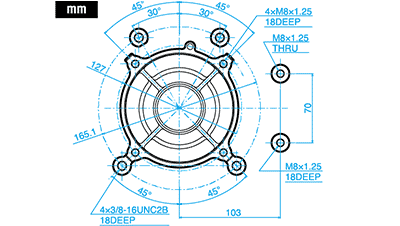

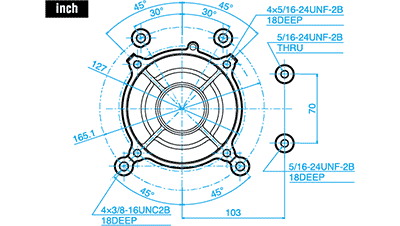

Mounting Face Dimensions
Direct Type
