MZ125
Multi Purpose Engine products information is accessible from here.

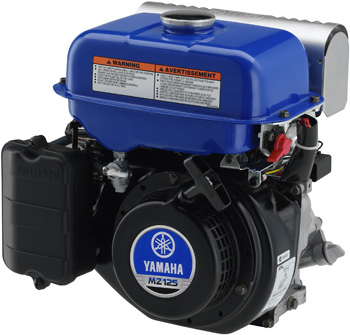

MZ125

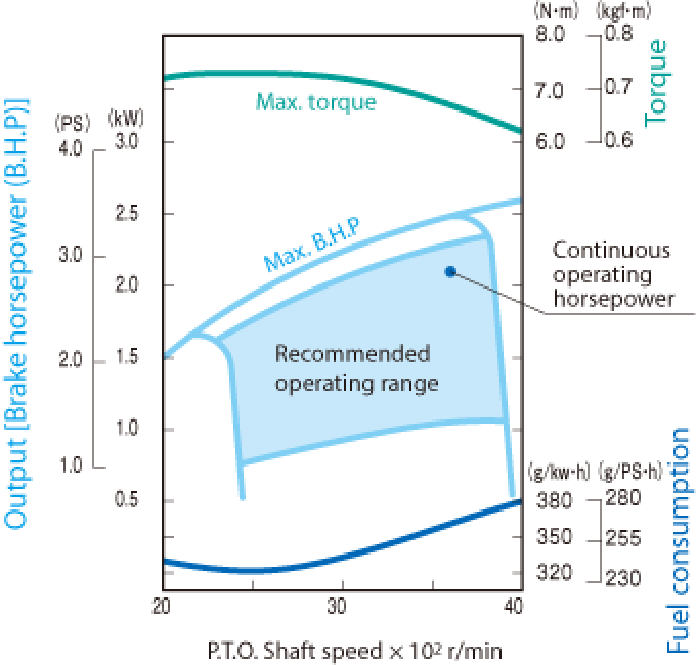

Performance Curve
Specification Sheet
| Model Name | MZ125 |
|---|---|
| Bore × Stroke | 56 × 50 mm |
| Displacement | 123cm3 |
| Compression Ratio | 8.3 |
| Max Power (Net) | 2.5 kW (3.4 PS) / 3600 rpm |
| Rated Power (Net) | 2.1 kW (2.9 PS) / 3600 rpm |
| Max Torque (Net) | 7.3 N・m (0.7 kgf・m) / 2400 rpm |
| Fuel Consumption | 322 g/kW・h (237 g/PS・h) |
| Fuel | GASOLINE |
| Fuel Tank Capacity | 4.5 L |
| Ignition System | T.C.I |
| Spark Plug | NGK BPR4ES |
| Lubrication System | Mechanical Splashing |
| Oil Capacity | 0.6 L |
| Dry Weight | 15.5 Kg |
| Dimentions (L×W×H) | 323.5 × 352 × 370 mm |
*Engine Output described above is representative net output measured at 3600rpm.

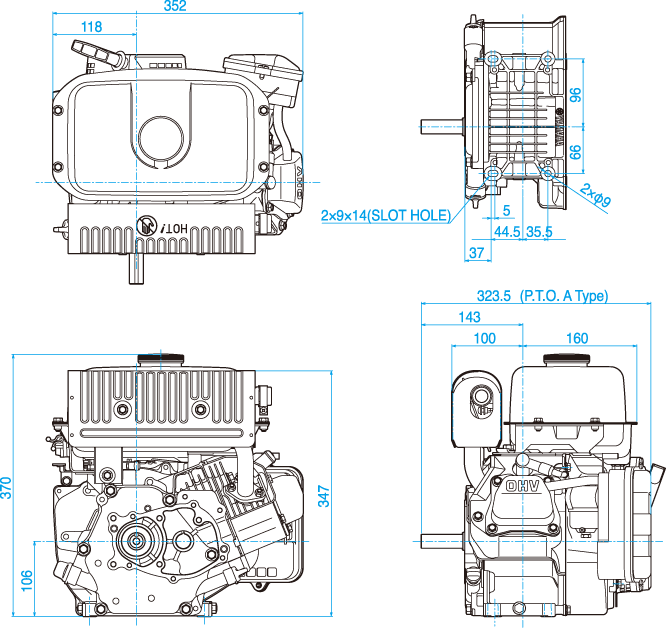

Dimensions
MZ125 P.T.O. A Type

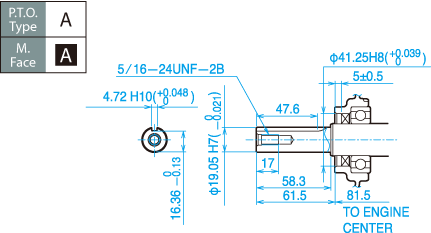

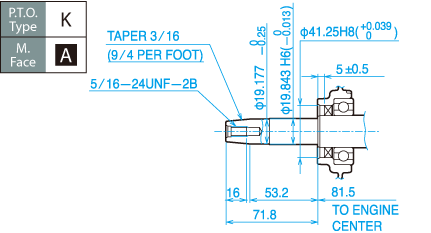

P.T.O. Shaft Dimensions

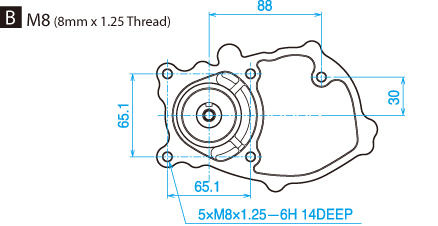

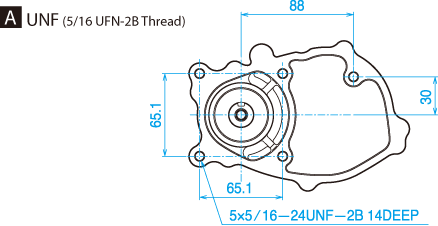

Mounting Face Dimensions
Direct Type
