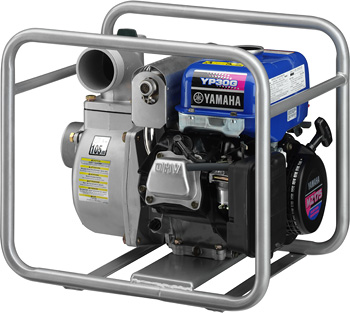

Water Pump YP30G
Generator products information is accessible from here.
YP30G
Standard Accessories
Performance Curve
Specification Sheet
| PUMP | |
|---|---|
| Connection Port Diameter | 3 inch |
| Connection thread | Outer Pipe Thread (Fire fighting Hose Coupling Thread) |
| Total head | 31m |
| Max. suction head | 7m |
| Max. capacity | 980L / min |
| ENGINE | |
| Type | 4-stroke,OHV, forced air cooled |
| Displacement | 171 cc |
| Max. Output | 5.5ps / 4000rpm |
| Rated output | 4.5ps / 3600rpm |
| Fuel | Unleaded gasoline |
| Fuel tank capacity | 4.5L |
| Starting system | Recoil starter |
| Dry weight | 30 kg |
| LxWxH (mm) | 397 x 518 x 466 |
Reliable Performance
The YP20G and 30G use a high-power engine. This allows them to work hard for you in various fields. Inaddition, the well-balanced design and precision construction result in significant reductions in gasoline and oil consumption. This gives the YP20G and 30G excellent cost-performance.
Pumping Capacity(L/min)
